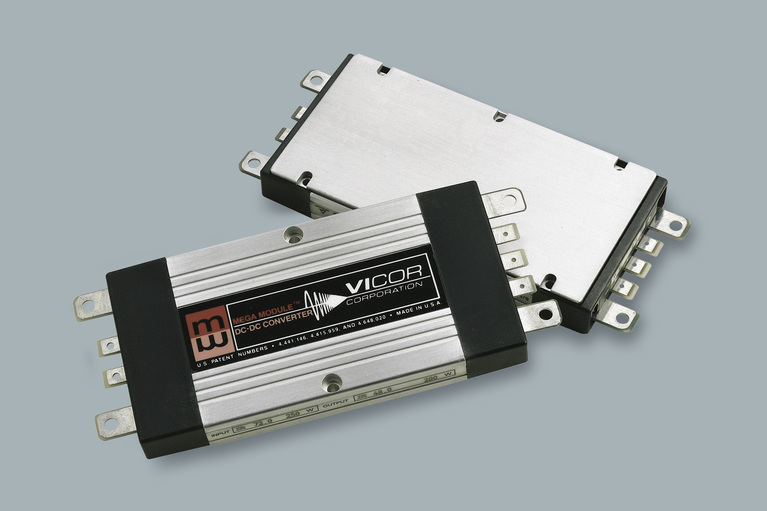

MIL-COTS MI-MegaMod™ DC-DC converters
MI-MegaMods offer up to a total of 300W from one, two or three outputs. Each unit incorporates one, two or three component-level Vicor MI-200/MI-J00 DC-DC converters in a chassis-mount package. In addition, the MI-MegaMod chassis-mount packaging can also be used on the MI-IAM, MI-RAM and MI-AIM modules.
Standard features such as wide output trimming/programming, current limiting, remote sense and logic enable/disable combine to offer a high degree of protection, versatility and reliability for power systems.
Power System Designer
Quick product searchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
Features and Benefits
Features and Benefits
One, two or three outputs
MIL‑STD‑704D/E/F transient compliance for 28 and 270VDC
MIL‑STD‑1399A compliance for 155VDC
