Driving next-gen efficiency and productivity to the battery lifecycle
With soaring demand for batteries today, how can production keep pace? Learn why Vicor power dense modules are perfectly designed to meet today’s demands
Increase throughput by delivering more power to more cells faster
High density and efficiency
Bidirectional capability
Faster time to market
Wide input range
Optimized DC-DC power conversion to meet new market demands
Efficient and power-dense
Using a modular approach to power, Vicor high performance power modules require dramatically less space than traditional discrete power solutions while providing high efficiency and power density. This enables increased battery throughput without increasing floor space.
Advanced power architectures
Vicor patented power architectures and topologies enable power designs for all phases of the battery lifecycle that maximize the efficiency of systems by utilizing fixed-ratio converters and easily modifying available power levels by power matching and paralleling modules.
Power flow in both directions to recycle energy
Vicor bidirectional power modules allow electricity to flow in two directions, making recycling energy used in the battery charging process effortless and efficient. The recycled energy can be used to charge different cells, for other manufacturing processes, or sent back into the grid for further cost savings.
Quickly implement a power solution
Vicor provides tested and qualified power modules to build power delivery networks that can be designed quickly without all the wasted time and effort to test and certify a new discrete design. This enables our customers to get to market faster, giving them a distinct advantage over their competition.
The power delivery network
Isolated, high-density BCM fixed-ratio converters safely and reliably convert a high voltage (up to 800V) input into standard safety extra low voltage (SELV) bus output voltages of either 12, 24 or 48V for design flexibility. The voltage can then be regulated down to the level appropriate for battery cell formation, 4.2V in this example. The BCM modules are power matched and paralleled to deliver more power and provide for bidirectional power flow, allowing the system to reclaim the energy used in the battery cell formation process by sending it back into the grid or to an energy storage device where it can be reused to power additional battery cells in the future.
Isolated fixed-ratio
Input: 800 – 48V
Output: 2.4 – 55.0V
Current: Up to 150A
Efficiency: Up to 98%
As small as 22.0 x 16.5 x 6.7mm
Resources
Resources for the design engineer

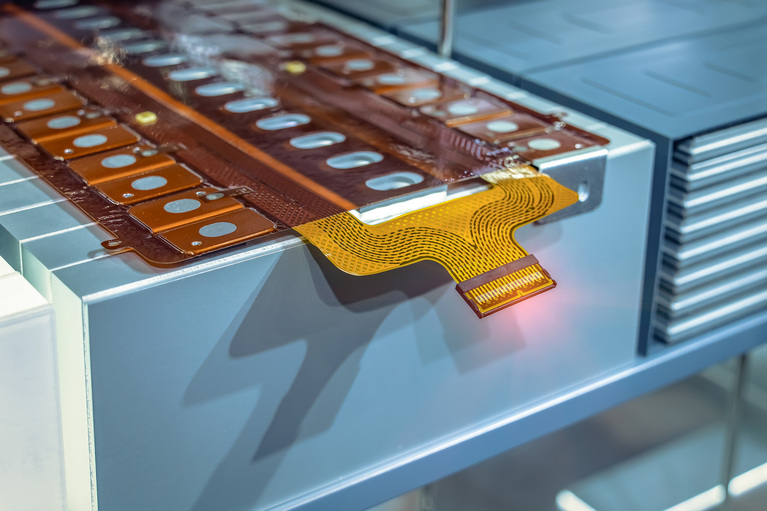

Fixed-ratio converters charge up efficiency across battery lifecycle
Power conversion technology limits battery lifecycle productivity. Vicor high-density fixed-ratio converters enable greater efficiency

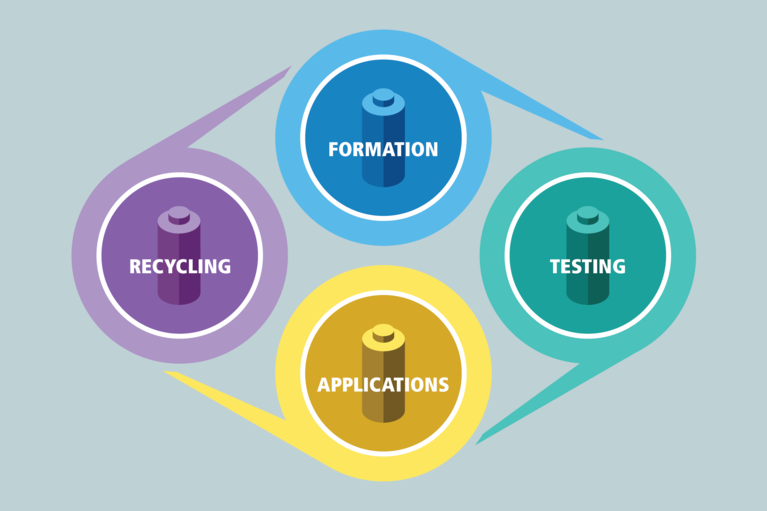

Fixed-ratio converters unleash innovation across the battery lifecycle
Bidirectional DC-DC converter play a vital role in the evolving battery ecosystem. Learn how high-density power modules are driving new productivity

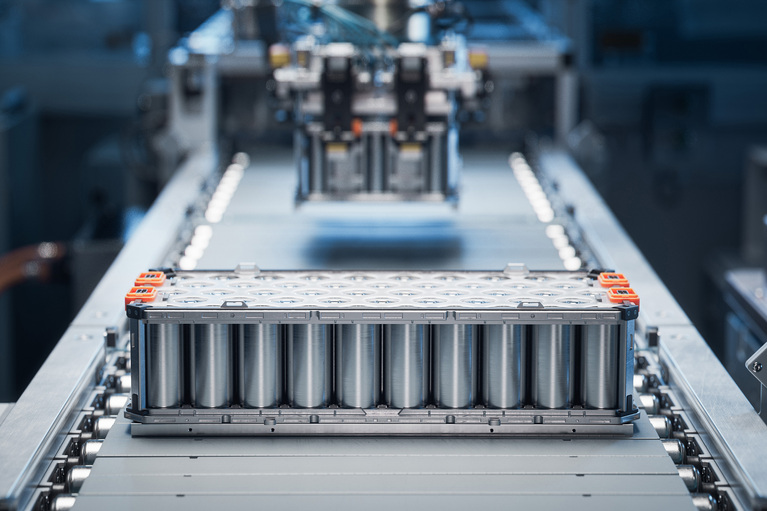

High-performance power modules drive the battery lifecycle
