RAM™ Ripple Attenuator Module

Output ripple attenuator for VI-200/VI-J00

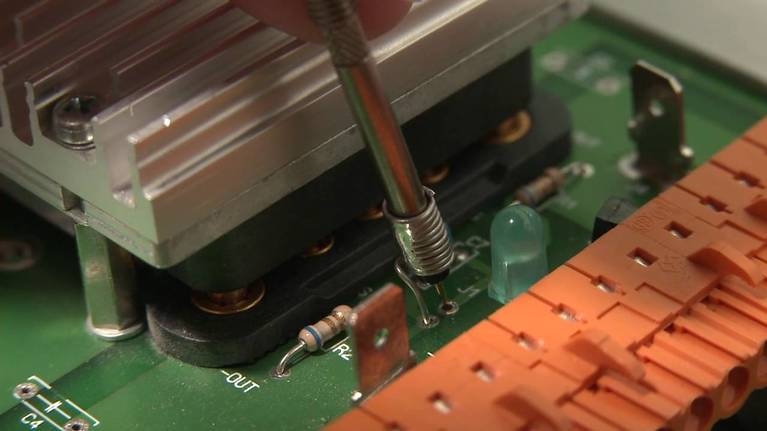

The RAM (Ripple Attenuator Module) may be connected to VI-200 or VI-J00 converters, FlatPACs™, ComPACs™ or MegaMods™, with output voltages from 5 to 50V, to limit total output noise to less than 3mV peak-to-peak at loads up to 20A. Combining active and passive filtering, the RAM attenuates both low-frequency input power source harmonics and high-frequency switching components in the frequency range of DC to 20MHz, while exhibiting efficiencies of 93 – 99%. No adjustments are required and remote sense and output voltage trim features are retained.

The RAM offers power systems architects a single, flexible, component-level solution to almost any clean-power problem. It also eliminates the space, efficiency and weight penalties associated with linear power sources, and the stability, efficiency, and adjustment penalties associated with external add-on filters for conventional switchers.

Vicor RAM™ Ripple Attenuator Module Product Family Image

Filter Products

0 Products
0 Products
Part Number Data Sheet Temperature Current (A) RoHS Compliant Add to cart / view details
VI-RAM-E1
Part Number: VI-RAM-E1 Data Sheet:
Temperature:
–10°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-C1
Part Number: VI-RAM-C1 Data Sheet:
Temperature:
–25°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-C2
Part Number: VI-RAM-C2 Data Sheet:
Temperature:
–25°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-I1
Part Number: VI-RAM-I1 Data Sheet:
Temperature:
–40°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-M1
Part Number: VI-RAM-M1 Data Sheet:
Temperature:
–55°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VE-RAM-E1
Part Number: VE-RAM-E1 Data Sheet:
Temperature:
–10°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-C1
Part Number: VE-RAM-C1 Data Sheet:
Temperature:
–25°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-I1
Part Number: VE-RAM-I1 Data Sheet:
Temperature:
–40°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-M1
Part Number: VE-RAM-M1 Data Sheet:
Temperature:
–55°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VI-RAM-E2
Part Number: VI-RAM-E2 Data Sheet:
Temperature:
–10°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-I2
Part Number: VI-RAM-I2 Data Sheet:
Temperature:
–40°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VI-RAM-M2
Part Number: VI-RAM-M2 Data Sheet:
Temperature:
–55°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
No
View details
VE-RAM-E2
Part Number: VE-RAM-E2 Data Sheet:
Temperature:
–10°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-C2
Part Number: VE-RAM-C2 Data Sheet:
Temperature:
–25°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-I2
Part Number: VE-RAM-I2 Data Sheet:
Temperature:
–40°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details
VE-RAM-M2
Part Number: VE-RAM-M2 Data Sheet:
Temperature:
–55°C to +100°C
Current (A):
Up to 10A
RoHS Compliant:
Yes
View details

Power System Designer

Quick product searchWatch demo video

Input specifications

Min input: Minimum input:
Nom input: Nominal input:
Max input: Maximum input:

Output specifications

Output
Min output: Minimum output:
Nom output: Nominal output:
Max output: Maximum output:
Vicor Power System Designer

Features and Benefits

Features and benefits

Reduces output ripple

Reduces output ripple to <3mVP-P (VI-200)

Compatible with any VI-200 and VI-J00 product

Compatible with any VI-200 / VI-J00 based product with a 5 – 50VDC output

No adjustments required

No adjustments required

Converter sense, trim, overvoltage and overcurrent retained

Converter sense, trim, overvoltage and overcurrent retained
