Case study: Central DC-DC converter

Significantly reducing the size and weight of DC-DC conversion

product-table-datasheet-icon-default.svgPDF

Customer’s challenge

A traditional silver box power supply is large. It’s difficult to fit in tight spaces and its heavy weight inhibits engineers’ goals to increase driving range between charges. The supply and other silver boxes – on board charger and inverter – all require liquid cooling that adds more weight and complexity. A discrete solution likely won’t work on a different platform, and reengineering to scale power up and down requires significant cost and time frames. The key challenges were:

  • Volume of space required to power all loads in an EV
  • Hundreds of potential fail points in soldering and connections
  • Reduce weight from the boxes
automotive dashboard technology image

The Vicor solution

Vicor power modules are industry leading in high density power conversion. Their packaging protects inside components from harsh environmental conditions, eliminating creepage and clearance issues that make discrete solutions so large and heavy. Power modules provide conversion that’s already tested, with simple passive thermal management, and are easy to adapt for use in different vehicle platforms. Their much smaller volume also makes it feasible to combine DC-DC conversion, on board charging and inverter into one box.

Key benefits

Key benefits

density icon image

Up to 20kW of power in a very compact, lightweight solution

isolation icon image

Isolation incorporated within the module eliminates extra components

lightweight feather icon

Reduced weight

Power delivery network

The BCM6135 power module converts the high voltage battery power down to a 48V SELV at 98% efficiency. The PRM3735 is used to provide a regulated 48V rail, while the DCM3735 converts 48V to a 12V regulated rail. Modules can be easily paralleled to provide as much power as is needed downstream. With the miniature dimensions of power modules, the resulting overall volume of the power supply is small enough to be located within tight spaces in the vehicle engine compartment where a bulky, heavy discrete power supply simply would not fit.

Vicor power delivery network for a central DC-DC converters
BCM6135

800/48V BCM6135


Isolated converter


Input: 520 – 920V


Output: 32.5 – 57.5V


Current: Up to 80A


Power: 2.5kW


Efficiency: up to 98%


61.3 x 35.4 x 7.3mm

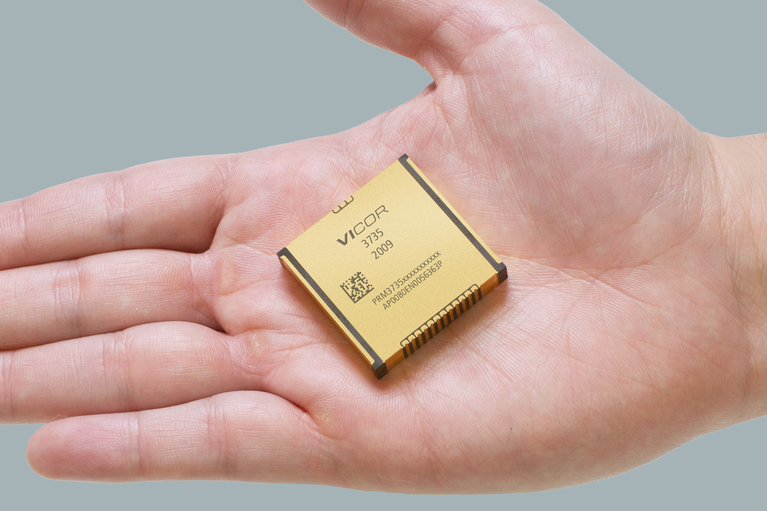

PRM3735

48/48V PRM3735


Non-Isolated, regulated


Input: 31 – 58V


Output: 36 – 54V


Power: 2.5kW


Efficiency: up to 99.2%


36.6 x 35.4 x 7.4mm

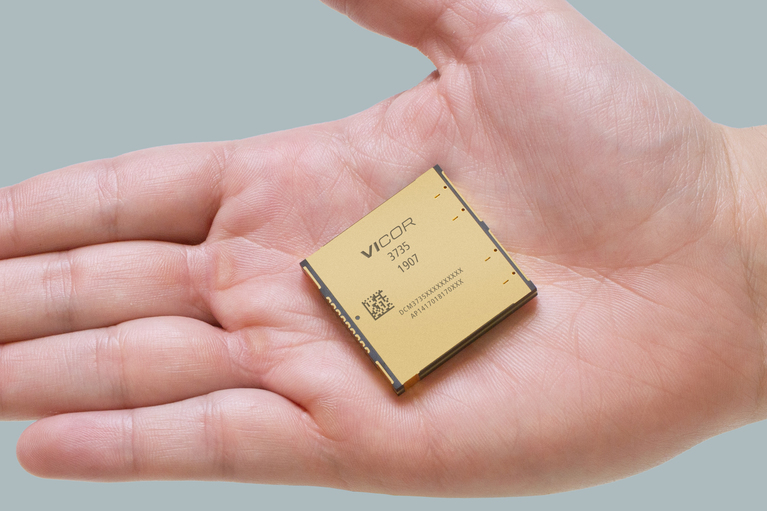

DCM3735

48/12V DCM3735


Non-Isolated, regulated


Input: 35 – 58V


Output: 8 – 16V


Power: 2kW


Efficiency: up to 96.5%


36.6 x 35.4 x 5.2mm
