從派克峰到 Bonneville 鹽灘，Lightning 的速度超越內燃機機車
Lightning Motorcycle 設計的電動摩托車在各個領域都表現出色。瞭解 Vicor 電源模組如何支持下一代摩托車的詳情
資源
設計工程師資源
長途卡車運輸的未來正在你附近的高速公路上自動化加速
Kodiak 自動駕駛技術徹底改變了長途卡車運輸。瞭解有關驅動肩負重任的“觀察”感測器的 Vicor 電源模組的更多資訊
高密度電源轉換器顯著减少 DC-DC 轉換裝置的尺寸並減輕重量
傳統的銀河電源體積龐大、重量較大，工程師難以實現新增續航里程的目標。電源模組可减小尺寸、降低複雜性，同時降低成本，縮短時間，以便為不同平臺增减功率
使用 800V 電池為 400V 輔助負載供電
Vicor 利用單一電源模組進行高密度電源轉換，提供了體積最小、重量最輕、效率，將 800V 電壓轉換為 400V 電壓
Compact and lightweight icon
Fast transient response
Scalable across platforms
Power 48V loads right off the HV battery
Power modules enable 48V architectures
2.5 kilowatts of power in a small space
Vicor high performance power modules require dramatically less space than traditional discrete power solutions. This allows for flexible placement of power conversion within the vehicle where the alternatives simply would not fit.
Scalable power architecture
By adopting the modular approach, easily scale power to meet requirements by simply adding another module or swapping for a different module. This allows for the same power architecture to be deployed across vehicle platforms.
Eliminates the intermediary battery
Preserve the advantages of high-voltage energy storage by using a Vicor module to deliver power within a SELV range. It provides the fast response time required to meet the power drawn by the wide variety of subsystems.
Isolated and bidirectional
Isolation is contained within the Vicor BCM, eliminating many discrete components. The module supports regenerative power to the HV battery from loads to extend vehicle range.
Tailored solutions
Our team of engineers collaborates with customers to tailor our modules to support specific needs and to architect new, efficient, modular power delivery networks that take full advantage of our modules. Using just a few power modules, possible solutions support hundreds of unique power network designs to achieving the best mix of power, weight, and package space.
供電網絡

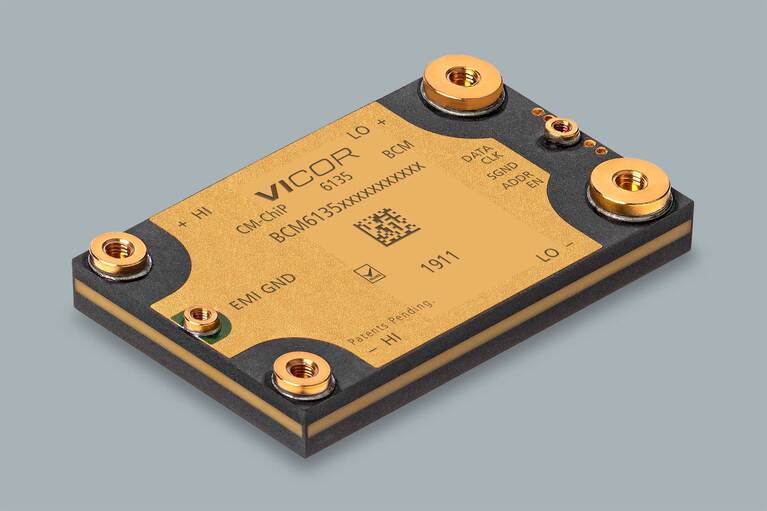

Vicor BCM6135 power modules enable 800V and 400V batteries to supply 48V power delivery networks, while reducing weight and space consumption. Power level can be increased and decreased by 2.5kW simply by adding or removing a module. As shown, three BCM6135s provide 7.5kW of power. The BCM6135 provides bidirectional power conversion and fast transient response, eliminating the need for intermediate energy storage at 48V. The BCM6135 can virtualize the HV battery to look like a 48V battery within the system without the space and weight associated with a physical 48V battery – something a discrete solution cannot do.
可購買
Isolated
Input: 520 – 920V
Output: 32.5 – 57.5V
Current: Up to 80A
Peak efficiency: 98.0%
61 x 35 x 7.4mm
Take full advantage of high density power conversion
When you engage with us, Vicor engineers will help you to architect a solution that best optimizes power, weight, and package space. We can:
- Help you to choose the most appropriate high performance power modules for your design and help you to optimize your board layout.
- Reconfigure or expand the capabilities our products to better suit your needs, such as increasing input range, adjusting current limits, and setting regulation points
- Work with you to determine the most efficient way to package our modules, giving you greater flexibility in placement in the vehicle.
- Develop a complete power solution using our modules that far exceeds the efficiency of a discrete system and that you can implement quickly.
